When designing right-angle gearing, engineers often face a tradeoff between ratio density, torque capacity, and mechanical efficiency. The position of the input pinion relative to the output gear determines these characteristics, and three common types—spiral bevel, worm, and hypoid—each offer different balances. Among them, hypoid gearing stands out for combining high efficiency, strong load-carrying capability, and a broad single-stage ratio range in a compact package.

What is hypoid gearing?

Hypoid gearing is a form of spiral gearing with offset axes. Its meshing action is primarily rolling, with only a small amount of sliding, which yields high mechanical efficiency and reduces long-term wear. The larger tooth contact area also boosts load-carrying capacity. Hypoid gears can deliver single-stage ratios typically up to 10:1 or 15:1, placing them in the medium-to-high ratio range.

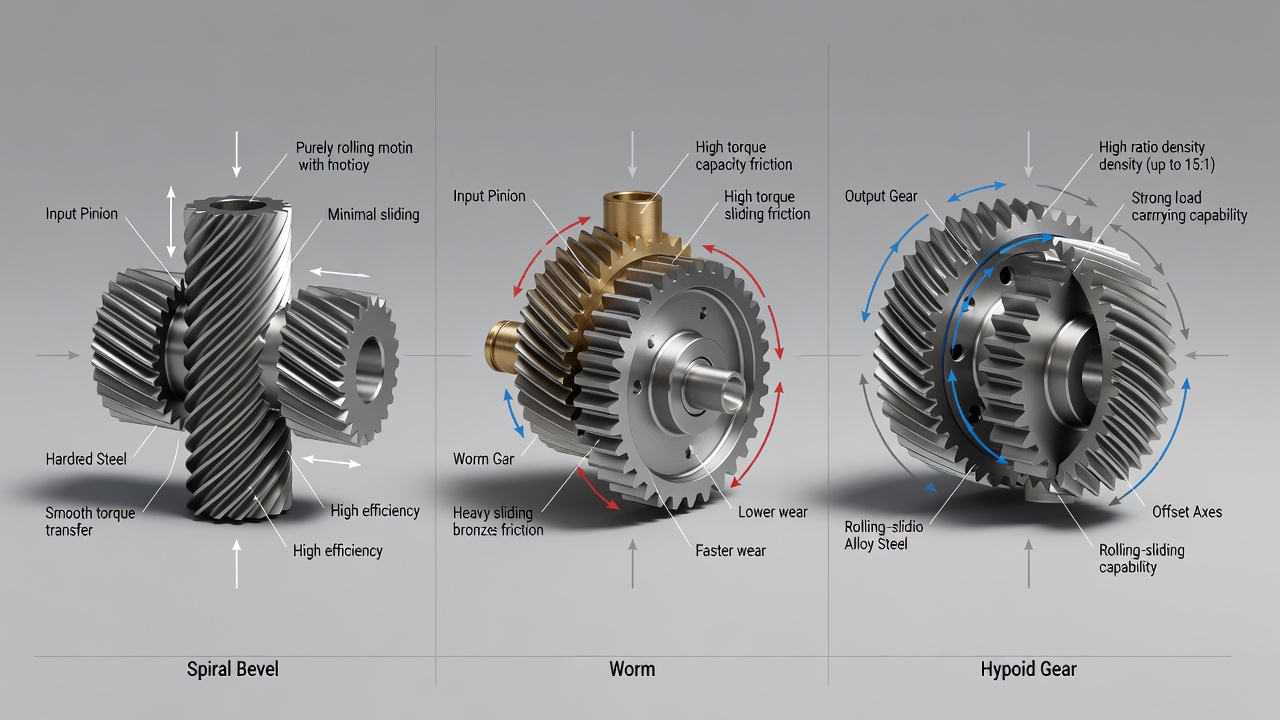

Hypoid vs. worm gearing

Worm gearing uses a screw-like pinion perpendicular to the output gear. Its meshing relies heavily on sliding, generating friction and giving it the lowest mechanical efficiency among right-angle types. However, worm gears offer very high total tooth contact area, leading to the highest torque capacity. They also cover a wide ratio span, often starting at 10:1–15:1 and reaching 100:1 or more.

Hypoid gearing’s primarily rolling action makes it significantly more efficient than worm gearing. “Because there is so much sliding action in a worm gear, a lot of times one of the gears—the wheel—will be made out of a softer material such as bronze or brass to help with the sliding friction,” says Matt Ruggles, senior design engineer at GAM. “The gear set tends to wear faster, and so your backlash will open up over time much quicker than in a hypoid gear.”

Hypoid vs. bevel gearing

Bevel gearing uses straight or helical teeth with intersecting axes. The teeth engage in a purely rolling motion, minimizing sliding and making bevel the most efficient right-angle type. “Bevel gearing is the most efficient of all the gearing types for right-angle, but it is much more ratio limited,” notes Ruggles. “When you get to speed decreasing, when you get around to the higher ratios, you start sacrificing torque capacity pretty quickly. So 6:1 is about where people usually stop.”

Hypoid gearing, while slightly less efficient due to its small sliding component, compensates with greater tooth contact area and thus higher load-carrying ability. It can also achieve higher single-stage ratios than bevel gearing without increasing size.

Hypoid vs. bevel-planetary gearing

To extend ratio range, bevel gears are sometimes combined with a planetary stage. But this adds cost and complexity. “The downside there is now you’re paying for two gear sets, the bevel and the planetary,” says Ruggles. “Even though the bevel is more efficient, because of the additional gear set, that’s a hit to your efficiency.”

A bevel-planetary unit also requires a larger housing to accommodate two gear sets and supporting components. Hypoid gearing can reach comparable ratios in a single stage—covering 3:1 to 15:1—while bevel-planetary units achieve only 3:1 to 10:1 with two stages, and in a less dense package. “Hypoid offers similar torque or better torque density in a smaller envelope, same ratio options, with roughly equivalent efficiency,” Ruggles adds. “In addition, because there’s only one gear set, you have much better control over backlash. Because there are fewer components, it’s a much stiffer system.”

Applications where hypoid gearing fits best

Hypoid gearing is ideal for applications requiring high ratio capability, strength, and efficiency in a compact footprint—particularly robotics. Originating in the automotive industry, it has been adapted for servo gearboxes such as GAM’s Dyna-Lite and Dyna Series. “We have a lot of experience with hypoid gearing,” says Ruggles. “We know what applications work really well for it, what applications are better for other technologies, and we’re able to customize those solutions to match what a customer needs.” He notes that planetaries can even be added at the input of hypoids for extremely high ratios, offering better efficiency and form factor than worm gearboxes.

For more information on right-angle gearboxes, visit GAM.
